SMART VALVE™

Configurations

The SMART VALVE™ is available in the following standard plumbing sizes:

• 3”
• 4”
• 6”
• 8"

Each SMART VALVE™ is built to exacting specifications based on the specific water system parameters. Spring tension is calibrated based on the users’ pressure and flow profile.

Connection types are determined by the existing pipe configuration. A completed site survey is required for all orders.

Cut Sheets

3 inch cut sheet SV2G

4 inch cut sheet SV2G

6 inch cut sheet SV2G

8 inch cut sheet SV2G

Installation

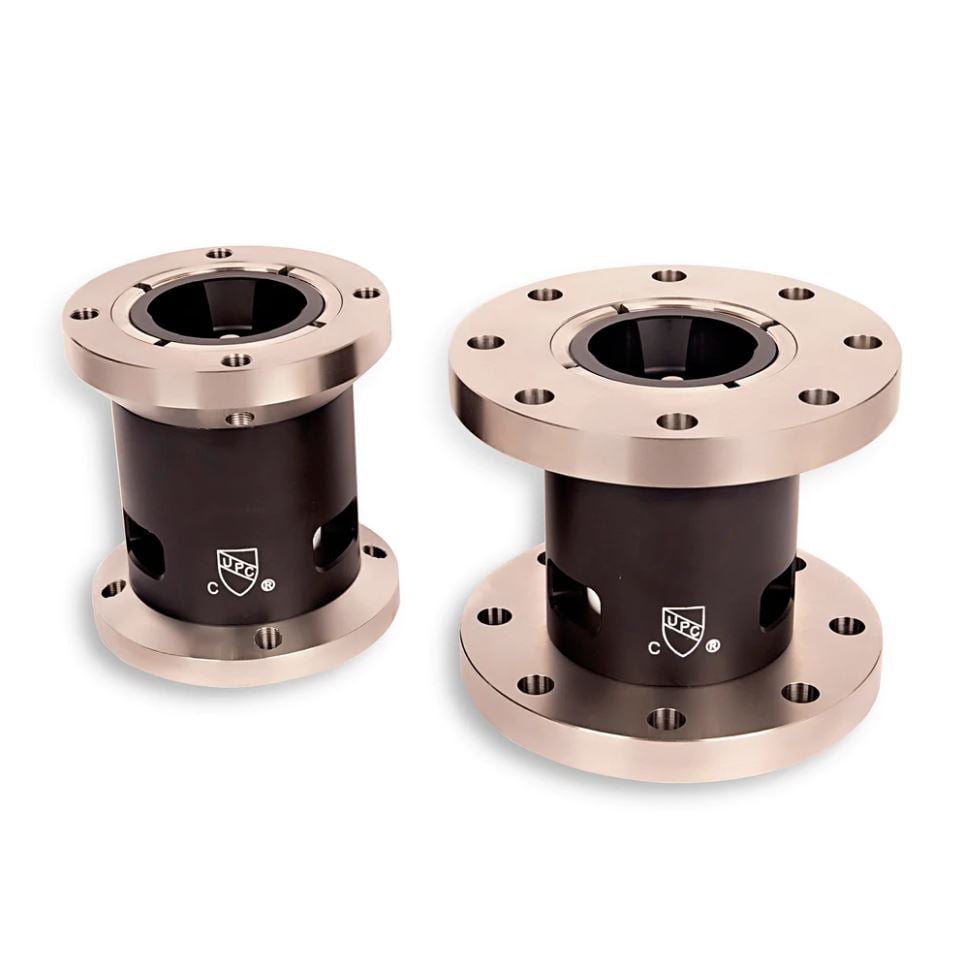

The SMART VALVE™ is installed on the USER side of the water meter. The valve is made in flanged and threaded configurations according to your system pipe design. Installation of the SMART VALVE™ should be performed by a licensed plumber and any plumber can easily install the unit.

All installations should include gaskets on flanged units or pipe tape on threaded units to prevent water leakage.

Please see our detailed Installation Instructions for Flanged or Threaded pipe.

NSF Certifications

NSF/ANSI 61 and NSF/ANSI 372

Customized Specifications

Each SMART VALVE™ is built to exacting specifications based on the specific water system parameters. Spring tension is calibrated based on the users’ pressure and flow profile. Connection types are determined by the existing pipe configuration. A completed site survey is required for all orders.

Construction

The SMART VALVE™ is made primarily of Acetron GP, an extremely strong, self-lubricating space-age resin created by Quadrants. Acetron GP is the material of choice when precision parts are required for impact and wear resistance in a wide range of industrial and mechanical applications.

With low, consistent internal stress, this material experiences little dimensional change during use.

Acetron GP is also an ideal material for use in wet environments because it resists moisture, will not accumulate particulates, will not corrode and self-seals extremely well eliminating the need for seals and gaskets that would wear out, making Acetron GP the ideal choice for the SMART VALVE. All non- Acetron GP components are manufactured from food-grade stainless steel.
